Mica Capacitors - Type 291-294
Jump to: Type 291 | Type 292 | Type 293 | Type 294
Please note: The capacitor catalog numbers displayed below (ending in J00) do not have any flanges. To place an order for a capacitor with one flange the catalog number remains the same except for a 1 at the end instead of a zero (J01). Similarly, for two flanges, the catalog number ends in (J02). Please feel free with to call us with any questions (802-226-7582).

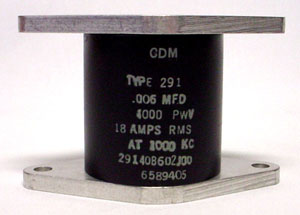

Type 291
Catalog Number | Capacitance | Voltage | Current at 1 MHz |
---|---|---|---|
29160B101J00 | 100 PF | 6000 | 2.0 Amps |
29160B111J00 | 110 PF | 6000 | 2.2 Amps |
29160B121J00 | 120 PF | 6000 | 2.2 Amps |
29160B131J00 | 130 PF | 6000 | 2.4 Amps |
29160B151J00 | 150 PF | 6000 | 2.4 Amps |
29160B161J00 | 160 PF | 6000 | 2.7 Amps |
29160B181J00 | 180 PF | 6000 | 3.0 Amps |
29160B201J00 | 200 PF | 6000 | 3.0 Amps |
29160B221J00 | 220 PF | 6000 | 3.3 Amps |
29160B241J00 | 240 PF | 6000 | 3.6 Amps |
29160B251J00 | 250 PF | 6000 | 3.6 Amps |
29160B271J00 | 270 PF | 6000 | 3.6 Amps |
29160B301J00 | 300 PF | 6000 | 3.9 Amps |
29160B331J00 | 330 PF | 6000 | 4.3 Amps |
29160B361J00 | 360 PF | 6000 | 4.3 Amps |
29160B391J00 | 390 PF | 6000 | 4.7 Amps |
29160B401J00 | 400 PF | 6000 | 4.7 Amps |
29160B431J00 | 430 PF | 6000 | 4.7 Amps |
29160B471J00 | 470 PF | 6000 | 5.1 Amps |
29160B501J00 | 500 PF | 6000 | 5.1 Amps |
29160B511J00 | 510 PF | 6000 | 5.1 Amps |
29160B521J00 | 520 PF | 6000 | 5.1 Amps |
29160B561J00 | 560 PF | 6000 | 5.6 Amps |
29160B621J00 | 620 PF | 6000 | 6.2 Amps |
29160B681J00 | 680 PF | 6000 | 6.2 Amps |
29160B751J00 | 750 PF | 6000 | 6.8 Amps |
29160B821J00 | 820 PF | 6000 | 6.8 Amps |
29160B911J00 | 910 PF | 6000 | 7.5 Amps |
29160B102J00 | 1000 PF | 6000 | 7.5 Amps |
29160B112J00 | 1100 PF | 6000 | 8.2 Amps |
29160B122J00 | 1200 PF | 6000 | 8.2 Amps |
29160B132J00 | 1300 PF | 6000 | 9.1 Amps |
29160B152J00 | 1500 PF | 6000 | 9.1 Amps |
29160B162J00 | 1600 PF | 6000 | 10.0 Amps |
29160B182J00 | 1800 PF | 6000 | 11.0 Amps |
29160B202J00 | 2000 PF | 6000 | 11.0 Amps |
29160B222J00 | 2200 PF | 6000 | 12.0 Amps |
29160B242J00 | 2400 PF | 6000 | 13.0 Amps |
29160B252J00 | 2500 PF | 6000 | 13.0 Amps |
29160B252J00 | 2500 PF | 6000 | 13.0 Amps |
29160B272J00 | 2700 PF | 6000 | 13.0 Amps |
29160B302J00 | 3000 PF | 6000 | 13.0 Amps |
29160B332J00 | 3300 PF | 6000 | 15.0 Amps |
29160B362J00 | 3600 PF | 6000 | 15.0 Amps |
29160B392J00 | 3900 PF | 6000 | 15.0 Amps |
29160B402J00 | 4000 PF | 6000 | 15.0 Amps |
29160B432J00 | 4300 PF | 6000 | 15.0 Amps |
29160B472J00 | 4700 PF | 6000 | 16.0 Amps |
29160B502J00 | 5000 PF | 6000 | 16.0 Amps |
29140B512J00 | 5100 PF | 4000 | 16.0 Amps |
29140B562J00 | 5600 PF | 4000 | 18.0 Amps |
29140B602J00 | 6000 PF | 4000 | 18.0 Amps |
29140B622J00 | 6200 PF | 4000 | 18.0 Amps |
29140B682J00 | 6800 PF | 4000 | 18.0 Amps |
29140B752J00 | 7500 PF | 4000 | 18.0 Amps |
29140B822J00 | 8200 PF | 4000 | 20.0 Amps |
29140B912J00 | 9100 PF | 4000 | 20.0 Amps |
29140B103J00 | 10000 PF | 4000 | 20.0 Amps |
29140B113J00 | 11000 PF | 4000 | 20.0 Amps |
29130B123J00 | 12000 PF | 3000 | 20.0 Amps |
29130B133J00 | 13000 PF | 3000 | 20.0 Amps |
29130B153J00 | 15000 PF | 3000 | 20.0 Amps |
29130B163J00 | 16000 PF | 3000 | 20.0 Amps |
29120B183J00 | 18000 PF | 2000 | 20.0 Amps |
29120B203J00 | 20000 PF | 2000 | 22.0 Amps |
29120B223J00 | 22000 PF | 2000 | 22.0 Amps |
29120B243J00 | 24000 PF | 2000 | 22.0 Amps |
29120B273J00 | 27000 PF | 2000 | 22.0 Amps |
29115B303J00 | 30000 PF | 1500 | 22.0 Amps |
29115B333J00 | 33000 PF | 1500 | 22.0 Amps |
29115B363J00 | 36000 PF | 1500 | 22.0 Amps |
29115B393J00 | 39000 PF | 1500 | 22.0 Amps |
29115B433J00 | 43000 PF | 1500 | 22.0 Amps |
29115B473J00 | 47000 PF | 1500 | 22.0 Amps |
29115B513J00 | 51000 PF | 1500 | 22.0 Amps |
29115B563J00 | 56000 PF | 1500 | 22.0 Amps |
29115B623J00 | 62000 PF | 1500 | 22.0 Amps |
29115B683J00 | 68000 PF | 1500 | 22.0 Amps |
29110B753J00 | 75000 PF | 1000 | 22.0 Amps |
29110B823J00 | 82000 PF | 1000 | 22.0 Amps |
29110B913J00 | 91000 PF | 1000 | 22.0 Amps |
29110B104J00 | 100000 PF | 1000 | 22.0 Amps |

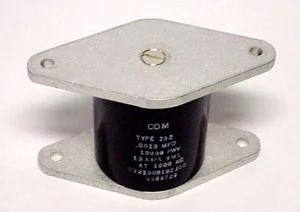

Type 292
Catalog Number | Capacitance | Voltage | Current at 1 MHz |
---|---|---|---|
292100B101J00 | 100 PF | 10000 | 3.0 Amps |
292100B111J00 | 110 PF | 10000 | 3.0 Amps |
292100B121J00 | 120 PF | 10000 | 3.3 Amps |
292100B131J00 | 130 PF | 10000 | 3.6 Amps |
292100B151J00 | 150 PF | 10000 | 3.6 Amps |
292100B161J00 | 160 PF | 10000 | 3.9 Amps |
292100B181J00 | 180 PF | 10000 | 4.3 Amps |
292100B201J00 | 200 PF | 10000 | 4.3 Amps |
292100B221J00 | 220 PF | 10000 | 4.7 Amps |
292100B241J00 | 240 PF | 10000 | 5.1 Amps |
292100B251J00 | 250 PF | 10000 | 5.1 Amps |
292100B271J00 | 270 PF | 10000 | 5.1 Amps |
292100B301J00 | 300 PF | 10000 | 5.6 Amps |
292100B331J00 | 330 PF | 10000 | 5.6 Amps |
292100B361J00 | 360 PF | 10000 | 6.2 Amps |
292100B391J00 | 390 PF | 10000 | 6.2 Amps |
292100B401J00 | 400 PF | 10000 | 6.2 Amps |
292100B431J00 | 430 PF | 10000 | 6.2 Amps |
292100B471J00 | 470 PF | 10000 | 6.8 Amps |
292100B501J00 | 500 PF | 10000 | 6.8 Amps |
292100B511J00 | 510 PF | 10000 | 6.8 Amps |
292100B561J00 | 560 PF | 10000 | 7.5 Amps |
292100B621J00 | 620 PF | 10000 | 8.2 Amps |
292100B681J00 | 680 PF | 10000 | 8.2 Amps |
292100B751J00 | 750 PF | 10000 | 8.2 Amps |
292100B821J00 | 820 PF | 10000 | 9.1 Amps |
292100B911J00 | 910 PF | 10000 | 9.1 Amps |
292100B102J00 | 1000 PF | 10000 | 10.0 Amps |
292100B112J00 | 1100 PF | 10000 | 10.0 Amps |
292100B122J00 | 1200 PF | 10000 | 11.0 Amps |
292100B132J00 | 1300 PF | 10000 | 11.0 Amps |
292100B152J00 | 1500 PF | 10000 | 12.0 Amps |
292100B162J00 | 1600 PF | 10000 | 12.0 Amps |
292100B182J00 | 1800 PF | 10000 | 13.0 Amps |
292100B202J00 | 2000 PF | 10000 | 13.0 Amps |
29280B222J00 | 2200 PF | 8000 | 13.0 Amps |
29280B242J00 | 2400 PF | 8000 | 15.0 Amps |
29280B252J00 | 2500 PF | 8000 | 15.0 Amps |
29280B272J00 | 2700 PF | 8000 | 15.0 Amps |
29280B302J00 | 3000 PF | 8000 | 16.0 Amps |
29280B332J00 | 3300 PF | 8000 | 16.0 Amps |
29280B362J00 | 3600 PF | 8000 | 18.0 Amps |
29280B392J00 | 3900 PF | 8000 | 18.0 Amps |
29280B402J00 | 4000 PF | 8000 | 18.0 Amps |
29280B432J00 | 4300 PF | 8000 | 18.0 Amps |
29260B472J00 | 4700 PF | 6000 | 20.0 Amps |
29260B502J00 | 5000 PF | 6000 | 20.0 Amps |
29260B512J00 | 5100 PF | 6000 | 20.0 Amps |
29250B562J00 | 5600 PF | 5000 | 20.0 Amps |
29250B602J00 | 6000 PF | 5000 | 22.0 Amps |
29250B622J00 | 6200 PF | 5000 | 22.0 Amps |
29250B682J00 | 6800 PF | 5000 | 22.0 Amps |
29250B752J00 | 7500 PF | 5000 | 22.0 Amps |
29250B822J00 | 8200 PF | 5000 | 24.0 Amps |
29250B912J00 | 9100 PF | 5000 | 24.0 Amps |
29250B103J00 | 10000 PF | 5000 | 24.0 Amps |
29250B113J00 | 11000 PF | 5000 | 27.0 Amps |
29240B123J00 | 12000 PF | 4000 | 27.0 Amps |
29240B133J00 | 13000 PF | 4000 | 27.0 Amps |
29240B153J00 | 15000 PF | 4000 | 27.0 Amps |
29240B163J00 | 16000 PF | 4000 | 27.0 Amps |
29230B183J00 | 18000 PF | 3000 | 30.0 Amps |
29230B203J00 | 20000 PF | 3000 | 30.0 Amps |
29230B223J00 | 22000 PF | 3000 | 30.0 Amps |
29230B243J00 | 24000 PF | 3000 | 33.0 Amps |
29230B273J00 | 27000 PF | 3000 | 33.0 Amps |
29220B303J00 | 30000 PF | 2000 | 33.0 Amps |
29220B333J00 | 33000 PF | 2000 | 33.0 Amps |
29220B363J00 | 36000 PF | 2000 | 33.0 Amps |
29220B393J00 | 39000 PF | 2000 | 36.0 Amps |
29220B433J00 | 43000 PF | 2000 | 36.0 Amps |
29220B473J00 | 47000 PF | 2000 | 36.0 Amps |
29220B513J00 | 51000 PF | 2000 | 36.0 Amps |
29220B563J00 | 56000 PF | 2000 | 36.0 Amps |
29220B623J00 | 62000 PF | 2000 | 39.0 Amps |
29220B683J00 | 68000 PF | 2000 | 39.0 Amps |
29215B753J00 | 75000 PF | 1500 | 39.0 Amps |
29215B823J00 | 82000 PF | 1500 | 39.0 Amps |
29215B913J00 | 91000 PF | 1500 | 39.0 Amps |
29215B104J00 | 100000 PF | 1500 | 39.0 Amps |
Type 293
Catalog Number | Capacitance | Voltage | Current at 1 MHz |
---|---|---|---|
293200B500J00 | 50 PF | 20000 | 2.4 Amps |
293200B101J00 | 100 PF | 20000 | 3.6 Amps |
293200B111J00 | 110 PF | 20000 | 3.9 Amps |
293200B121J00 | 120 PF | 20000 | 4.3 Amps |
293200B131J00 | 130 PF | 20000 | 4.3 Amps |
293200B151J00 | 150 PF | 20000 | 4.7 Amps |
293200B161J00 | 160 PF | 20000 | 5.1 Amps |
293200B181J00 | 180 PF | 20000 | 5.1 Amps |
293200B201J00 | 200 PF | 20000 | 5.6 Amps |
293200B221J00 | 220 PF | 20000 | 6.2 Amps |
293200B241J00 | 240 PF | 20000 | 6.2 Amps |
293200B251J00 | 250 PF | 20000 | 6.2 Amps |
293200B271J00 | 270 PF | 20000 | 6.8 Amps |
293200B301J00 | 300 PF | 20000 | 6.8 Amps |
293200B331J00 | 330 PF | 20000 | 7.5 Amps |
293200B361J00 | 360 PF | 20000 | 7.5 Amps |
293200B391J00 | 390 PF | 20000 | 8.2 Amps |
293200B431J00 | 430 PF | 20000 | 8.2 Amps |
293200B471J00 | 470 PF | 20000 | 9.1 Amps |
293200B501J00 | 500 PF | 20000 | 9.1 Amps |
293200B511J00 | 510 PF | 20000 | 9.1 Amps |
293200B561J00 | 560 PF | 20000 | 10.0 Amps |
293200B621J00 | 620 PF | 20000 | 11.0 Amps |
293200B681J00 | 680 PF | 20000 | 11.0 Amps |
293200B751J00 | 750 PF | 20000 | 12.0 Amps |
293200B801J00 | 800 PF | 20000 | 12.0 Amps |
293200B821J00 | 820 PF | 20000 | 12.0 Amps |
293200B911J00 | 910 PF | 20000 | 13.0 Amps |
293200B102J00 | 1000 PF | 20000 | 13.0 Amps |
293200B112J00 | 1100 PF | 20000 | 15.0 Amps |
293150B122J00 | 1200 PF | 15000 | 15.0 Amps |
293150B132J00 | 1300 PF | 15000 | 15.0 Amps |
293150B152J00 | 1500 PF | 15000 | 16.0 Amps |
293200B152J00 | 1500 PF | 20000 | 16.0 Amps |
293150B162J00 | 1600 PF | 15000 | 18.0 Amps |
293150B182J00 | 1800 PF | 15000 | 18.0 Amps |
293150B202J00 | 2000 PF | 15000 | 20.0 Amps |
293120B222J00 | 2200 PF | 12000 | 20.0 Amps |
293120B242J00 | 2400 PF | 12000 | 22.0 Amps |
293120B252J00 | 2500 PF | 12000 | 22.0 Amps |
293120B272J00 | 2700 PF | 12000 | 22.0 Amps |
293120B302J00 | 3000 PF | 12000 | 24.0 Amps |
293120B332J00 | 3300 PF | 12000 | 24.0 Amps |
293120B362J00 | 3600 PF | 12000 | 24.0 Amps |
293120B392J00 | 3900 PF | 12000 | 27.0 Amps |
293120B402J00 | 4000 PF | 12000 | 27.0 Amps |
293120B432J00 | 4300 PF | 12000 | 27.0 Amps |
293100B472J00 | 4700 PF | 10000 | 27.0 Amps |
293100B502J00 | 5000 PF | 10000 | 30.0 Amps |
293100B512J00 | 5100 PF | 10000 | 30.0 Amps |
293100B562J00 | 5600 PF | 10000 | 33.0 Amps |
293100B602J00 | 6000 PF | 10000 | 33.0 Amps |
293100B622J00 | 6200 PF | 10000 | 33.0 Amps |
293100B682J00 | 6800 PF | 10000 | 33.0 Amps |
293100B752J00 | 7500 PF | 10000 | 36.0 Amps |
293100B802J00 | 8000 PF | 10000 | 36.0 Amps |
293100B822J00 | 8200 PF | 10000 | 36.0 Amps |
29380B912J00 | 9100 PF | 8000 | 39.0 Amps |
29380B103J00 | 10000 PF | 8000 | 39.0 Amps |
29380B113J00 | 11000 PF | 8000 | 39.0 Amps |
29350B123J00 | 12000 PF | 5000 | 43.0 Amps |
29350B133J00 | 13000 PF | 5000 | 43.0 Amps |
29350B153J00 | 15000 PF | 5000 | 43.0 Amps |
29350B163J00 | 16000 PF | 5000 | 47.0 Amps |
29350B183J00 | 18000 PF | 5000 | 47.0 Amps |
29350B203J00 | 20000 PF | 5000 | 47.0 Amps |
29350B223J00 | 22000 PF | 5000 | 47.0 Amps |
29350B243J00 | 24000 PF | 5000 | 51.0 Amps |
29330B273J00 | 27000 PF | 3000 | 51.0 Amps |
29330B303J00 | 30000 PF | 3000 | 51.0 Amps |
29330B333J00 | 33000 PF | 3000 | 51.0 Amps |
29330B363J00 | 36000 PF | 3000 | 51.0 Amps |
29330B393J00 | 39000 PF | 3000 | 51.0 Amps |
29330B433J00 | 43000 PF | 3000 | 51.0 Amps |
29330B473J00 | 47000 PF | 3000 | 51.0 Amps |
29330B513J00 | 51000 PF | 3000 | 51.0 Amps |
29330B563J00 | 56000 PF | 3000 | 51.0 Amps |
29330B623J00 | 62000 PF | 3000 | 51.0 Amps |
29330B683J00 | 68000 PF | 3000 | 51.0 Amps |
29320B753J00 | 75000 PF | 2000 | 51.0 Amps |
29320B823J00 | 82000 PF | 2000 | 51.0 Amps |
29320B913J00 | 91000 PF | 2000 | 51.0 Amps |
29320B104J00 | 100000 PF | 2000 | 51.0 Amps |
Type 294
Catalog Number | Capacitance | Voltage | Current at 1 MHz |
---|---|---|---|
294300B500J00 | 50 PF | 30000 | 5.1 Amps |
294300B101J00 | 100 PF | 30000 | 5.1 Amps |
294300B111J00 | 110 PF | 30000 | 5.1 Amps |
294300B121J00 | 120 PF | 30000 | 5.6 Amps |
294300B131J00 | 130 PF | 30000 | 6.2 Amps |
294300B151J00 | 150 PF | 30000 | 6.2 Amps |
294300B161J00 | 160 PF | 30000 | 6.8 Amps |
294300B181J00 | 180 PF | 30000 | 6.8 Amps |
294300B201J00 | 200 PF | 30000 | 7.5 Amps |
294300B221J00 | 220 PF | 30000 | 7.5 Amps |
294300B241J00 | 240 PF | 30000 | 8.2 Amps |
294300B251J00 | 250 PF | 30000 | 8.2 Amps |
294300B271J00 | 270 PF | 30000 | 9.1 Amps |
294300B301J00 | 300 PF | 30000 | 9.1 Amps |
294300B331J00 | 330 PF | 30000 | 9.1 Amps |
294300B361J00 | 360 PF | 30000 | 10.0 Amps |
294300B391J00 | 390 PF | 30000 | 11.0 Amps |
294300B431J00 | 430 PF | 30000 | 11.0 Amps |
294300B471J00 | 470 PF | 30000 | 11.0 Amps |
294300B501J00 | 500 PF | 30000 | 12.0 Amps |
294300B511J00 | 510 PF | 30000 | 12.0 Amps |
294300B561J00 | 560 PF | 30000 | 13.0 Amps |
294300B621J00 | 620 PF | 30000 | 13.0 Amps |
294300B681J00 | 680 PF | 30000 | 13.0 Amps |
294300B751J00 | 750 PF | 30000 | 15.0 Amps |
294300B801J00 | 800 PF | 30000 | 15.0 Amps |
294300B821J00 | 820 PF | 30000 | 15.0 Amps |
294300B911J00 | 910 PF | 30000 | 15.0 Amps |
294300B102J00 | 1000 PF | 30000 | 16.0 Amps |
294250B112J00 | 1100 PF | 25000 | 18.0 Amps |
294250B122J00 | 1200 PF | 25000 | 18.0 Amps |
294250B132J00 | 1300 PF | 25000 | 18.0 Amps |
294250B152J00 | 1500 PF | 25000 | 20.0 Amps |
294250B162J00 | 1600 PF | 25000 | 20.0 Amps |
294250B182J00 | 1800 PF | 25000 | 22.0 Amps |
294200B202J00 | 2000 PF | 20000 | 22.0 Amps |
294200B222J00 | 2200 PF | 20000 | 24.0 Amps |
294200B242J00 | 2400 PF | 20000 | 24.0 Amps |
294200B252J00 | 2500 PF | 20000 | 24.0 Amps |
294200B272J00 | 2700 PF | 20000 | 24.0 Amps |
294200B302J00 | 3000 PF | 20000 | 27.0 Amps |
294200B332J00 | 3300 PF | 20000 | 27.0 Amps |
294200B362J00 | 3600 PF | 20000 | 27.0 Amps |
294200B392J00 | 3900 PF | 20000 | 30.0 Amps |
294200B402J00 | 4000 PF | 20000 | 30.0 Amps |
294150B432J00 | 4300 PF | 15000 | 30.0 Amps |
294150B472J00 | 4700 PF | 15000 | 30.0 Amps |
294150B502J00 | 5000 PF | 15000 | 33.0 Amps |
294200B502J00 | 5000 PF | 20000 | 33.0 Amps |
294150B512J00 | 5100 PF | 15000 | 33.0 Amps |
294150B562J00 | 5600 PF | 15000 | 36.0 Amps |
294150B602J00 | 6000 PF | 15000 | 36.0 Amps |
294150B622J00 | 6200 PF | 15000 | 36.0 Amps |
294150B682J00 | 6800 PF | 15000 | 36.0 Amps |
294150B752J00 | 7500 PF | 15000 | 36.0 Amps |
294120B802J00 | 8000 PF | 12000 | 39.0 Amps |
294120B822J00 | 8200 PF | 12000 | 39.0 Amps |
294120B912J00 | 9100 PF | 12000 | 39.0 Amps |
294100B103J00 | 10000 PF | 10000 | 43.0 Amps |
294100B113J00 | 11000 PF | 10000 | 43.0 Amps |
29480B123J00 | 12000 PF | 8000 | 43.0 Amps |
29480B133J00 | 13000 PF | 8000 | 47.0 Amps |
29480B153J00 | 15000 PF | 8000 | 47.0 Amps |
29480B163J00 | 16000 PF | 8000 | 47.0 Amps |
29460B183J00 | 18000 PF | 6000 | 51.0 Amps |
29460B203J00 | 20000 PF | 6000 | 51.0 Amps |
29460B223J00 | 22000 PF | 6000 | 51.0 Amps |
29460B243J00 | 24000 PF | 6000 | 56.0 Amps |
29460B273J00 | 27000 PF | 6000 | 56.0 Amps |
29460B303J00 | 30000 PF | 6000 | 56.0 Amps |
29450B333J00 | 33000 PF | 5000 | 56.0 Amps |
29450B363J00 | 36000 PF | 5000 | 56.0 Amps |
29450B393J00 | 39000 PF | 5000 | 56.0 Amps |
29450B403J00 | 40000 PF | 5000 | 56.0 Amps |
29450B433J00 | 43000 PF | 5000 | 56.0 Amps |
29450B473J00 | 47000 PF | 5000 | 56.0 Amps |
29450B513J00 | 51000 PF | 5000 | 56.0 Amps |
29450B563J00 | 56000 PF | 5000 | 56.0 Amps |
29450B623J00 | 62000 PF | 5000 | 56.0 Amps |
29440B683J00 | 68000 PF | 4000 | 56.0 Amps |
29440B753J00 | 75000 PF | 4000 | 62.0 Amps |
29430B823J00 | 82000 PF | 3000 | 62.0 Amps |
29430B913J00 | 91000 PF | 3000 | 62.0 Amps |
29430B104J00 | 100000 PF | 3000 | 62.0 Amps |
